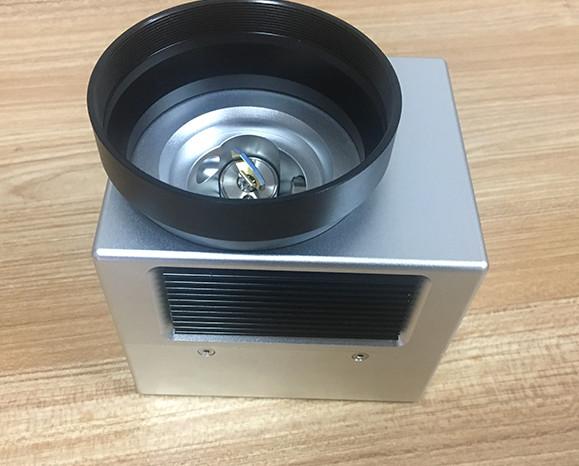

    1064nm CO5 YAG 10mm digital Signal Laser Scan Head By Air Cooling

    Ask Lasest Price
    Brand Name : JCZ
    Certification : CE
    Model Number : GO5-YAG-10
    Price :
    Delivery Time : 1 day
    Payment Terms : T/T
    Supply Ability : 1000 set/month
    • Product Details
    • Company Profile

    1064nm CO5 YAG 10mm digital Signal Laser Scan Head By Air Cooling


    1064nm yag digital signal laser scan head

    Quick Detail:

    • yag digital laser scan head used on fiber /SPI /YAG laser machine for laser marking and laser engraving.High precision, quality, provide after-sales service



    Description:

    Condition

    New

    Laser Type

    fiber/co2/yag

    CNC or Not

    Yes

    Cooling Mode

    Air Cooling

    Control Software

    EZCAD

    Graphic Format Supported

    AI, BMP, DST, DWG, DXF, DXP, LAS, PLT

    Working Accuracy

    0.005

    Place of Origin

    Beijing, China (Mainland)

    Brand Name

    JCZ

    Model Number

    GO5-YAG10

    Power(W)

    10/20/50/75/100/150..

    Certification

    CE

    After-sales Service Provided

    Overseas service center available

    color

    Silvery white



    Applications:

    • Laser Marking ,
    • laser engraving


    Specifications:


    The optical hole diameter10mm
    Corresponding time step
    The deflection Angle of 1%0.4ms
    The deflection Angle of 10%1.2ms
    Speed
    Marking speed5000mm/s
    Positioning speed10000mm/s
    Temperature drift(more than 8 hours)<0.3mrad
    Interface protocolXY2-100 Standard
    Optical performance
    Scanning angle±0.35 rad
    Gain error<5 mrad
    Zero offset<5 mrad
    Working temperature25℃ ± 10℃
    Power±15V/5A

    1064nm CO5 YAG 10mm digital Signal Laser Scan Head By Air Cooling



    Competitive Advantage:

    • Cheap ,
    • high speed,
    • work stable ,
    • good quality
    • zero drift,
    • smaller size
