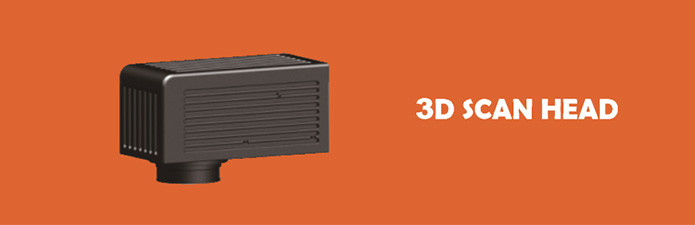

    3d Laser Scanning Head Black Metal Material With Wave Length 1064nm

    Ask Lasest Price
    Brand Name : BJJCZ
    Model Number : 3D
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100Set
    Delivery Time : 25work days
    • Product Details
    • Company Profile

    3d Laser Scanning Head Black Metal Material With Wave Length 1064nm

    3d Laser Scanning Head Black Metal Material With Wave Length 1064nm

    3d Laser Scanning Head Black Metal Material With Wave Length 1064nm

    Detailed parameters


    Aperture<3 mm

    Wavelength 1064nm

    Dynamic performance

    Tracking error 0.16 ms

    Step response time

    1% of full scale 0.40 ms

    10%of full scale 1.2 ms

    Typical speeds5.0 m/s

    Weight (without objective) 3 kg

    f=254 f-theta lens (174*174) ±40


    Common Speci

    (all angles are in optical degrees)

    Dynamic performance

    Repeatability (RMS) < 2 µrad

    Offset drift < 30 µrad/K

    Gain drift < 80 ppm/K

    Long-term drift over 8 hours < 0.3 mrad

    Optical performance

    Typical scan angle ±0.35 rad

    Gain error < 5 mrad

    Zero offset < 5 mrad

    Nonlinearity < 3.5 mrad / 44°

    Power requirements

    For XY ±15 V DC, max. 3 A each

    For Z ±15 V 3A
    Protocol​ Digital XY2-100
