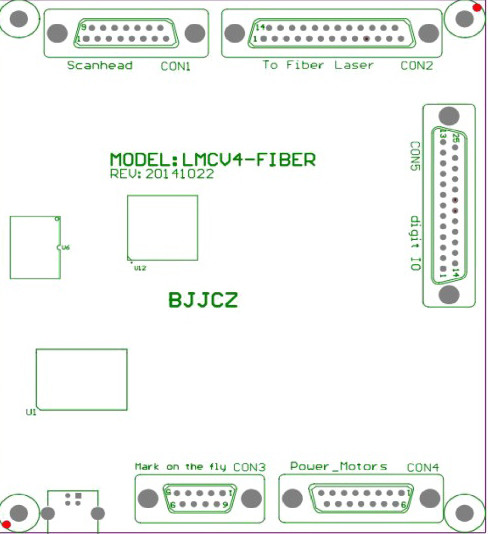

IPG Laser Marking Controller , PCB Fiber laser control card run
steadily
Fiber laser control card can control whole type fiber laser machine
for laser marking and laser engraving .The software EZCAD Support
CO2,YAG,IPG,SPI laser, adjusting currents, frequency, duty ratio in
software
- Use 25-pins DB25 socket,connect IPG YLP and YLPM laser module via
25-pin cable directly.
- Adjustable digital/analog output used for scan head.
- Mark-on-fly function with an encoder connected.
- Extend axes output:Direction/pulse signals,used to control stepping
motor or servomotor.
- 25 routes general digital signals(TTL compatible), 4 of the IO
ports can be OC IO, can connect with relay.
- Original start signal:Used when marking contents are the same and
high speed is required. Compatible with USB2.0
Applications:
- Laser Marking
- Laser Engraving
- Rapid prototyping
- Drilling circuit board via holes
- Cutting cloth
- Cutting paper
Description: main feature
StandardDB25 connector,canbewiretoIPG laserdirectly.
Galvocontrolsignal isdigital, whichcanbeconnecttomost
scanheaddirectly.
on-the-fly marking feature. A encoder can be used to surveillance
the pipeline speed real-timely. Multiple boards on 1 computer: One
computer can control up to 8 control board to mark
differentpatternsimultaneously
Extension axis(step motor or sever motor): two set of
direction/pulse signal can be used to control2step(server) motors.
1
16generalinputsignals(TTLcampatible):In0-In13,XORG0(IN14),YORG0(IN15).
8 general output signals(TTL campatible): Out0-7 coming out of
Con5. Out0 - 3 are TTL
outputs.Out4-7canbeconfiguredasOCoutputsorTTLoutputs.
LaserErr signal: this signal will be activated when there is an
error occurs in the laser, OC output. Remark function: this
function is used to remark what ever is in the memory of the board,
especiallyconvenientforhigh speedmarkingofasamepattern.
CompatiblewithUSB2.0specifications.
Competitive Advantage:
Good quality ,work stable ,famous software EZCAD.
