    Lightweight UV Laser Marking Machine Parts For Flying Marking Industry

    Ask Lasest Price
    Brand Name : Huaray
    Model Number : Cypress-355-5W
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 50 set
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    Lightweight UV Laser Marking Machine Parts For Flying Marking Industry

    Cypress Series long life nanosecond UV laser /UV Laser Marking Machine parts


    Quick Detail:

    Huaray Laser Nanosecond product line 2019 latest product, with external cavity IP65 protection level,internal cavity inert gas protection, to meet high temperature and high humidity and dust environment;

    extremely lightweight, laser head weight reduction of 50%, volume reduction of 30% At the same time,it has the function of air filtration cycle, the alarm mechanism is comprehensive, the installation method is various, and it is easy to maintain later.


    Applicable scope:


    Flying marking industry, 3C electronics, 3D printing, electronic circuits, etc


    Function:


    External cavity IP65 protection level, internal cavity inert gas protection; electric shift point; lightweight design; comprehensive alarm mechanism; air filtration cycle


    Specifications:

    SPECIFICATIONSCypress-355-5 A
    Fundamental Center Wavelength355nm
    Output Power and Energy5W@50kHz
    Repetition Rate20kHz-200kHz
    Spatial ModeTEM00(M2≤1.2)
    Beam Circularity≥90%
    Pulse Width16±2ns@50kHz
    Working MaterialNd:YVO4
    Beam Pointing Stability<25μrad
    Pulse Energy Stability≤3%rms
    Power Stability≤3%rms
    Beam Diameter<10mm
    Beam Divergence<1mrad
    Coolingwater
    Polarization Ratio>100:1
    Power Consumption (VAC)AC220VorAC110V,600W
    ClassificationClass 4

    Competitive Advantage:


    1. External cavity IP65 protection grade, inner cavity inert gas protection 2, extremely lightweight, laser head weight reduction of 50%,

    volume reduction of 30%;; 3, high power stable output at high repetition rate, achieve frequency 20 -200kHz range is adjustable;


    Lightweight UV Laser Marking Machine Parts For Flying Marking Industry


    Lightweight UV Laser Marking Machine Parts For Flying Marking Industry

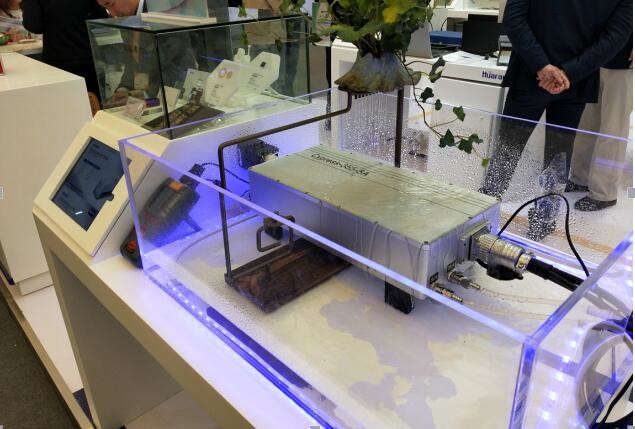

    The Cypress-355-5 A product was exhibited for the first time at the 2019 Shanghai Expo and received an all-weather water shower test.


    Lightweight UV Laser Marking Machine Parts For Flying Marking Industry
