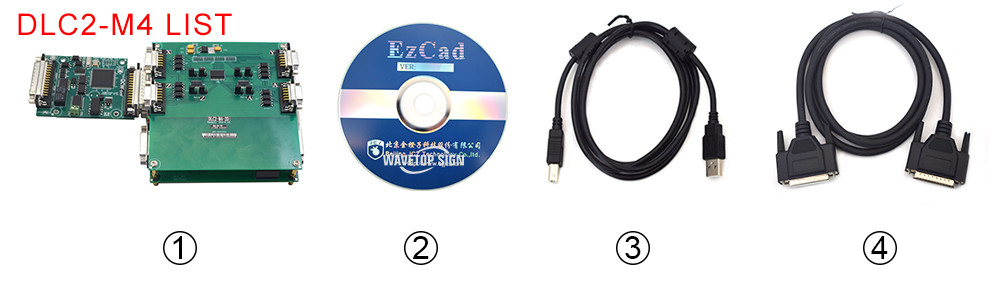

Software: EZCAD3 With Standard License

Figure 1 Board size
The board has two LED indicators. After the board is powered on, the green light is always on. The red light is on when the laser light is controlled during the marking process.
Interface function:
CON1: power interface, 2P green terminal socket;
CON2: laser interface, support all lasers, DB25 socket (female);
CON3: galvanometer interface, support enhanced XY2-100 data protocol, can drive 2D/3D galvanometer, DB15 socket;
CON5: IO interface for flight marking interface, input and output digital signals, DB37 socket.

Description:
There are two output modes for the pulse and direction signals output by the board: differential output and common anode (TTL) output, which are selected by jumpers JP1-JP8, defined as below:
(1) When the 2-3 pins of the jumper are shorted, the pulse and direction signals are differential outputs, and the PIN2 is pulse-, PIN6 is pulse+, PIN3 is direction-, PIN7 is direction+, which signals are respectively connected to The PUL-, PUL+, DIR- and DIR+ signals of the driver.
(2) When the 1-2 pins of the jumper are shorted, the pulse and direction signals are common anode output, the PIN1 is VCC, and is connected to the VCC of the driver, the pulse of the PIN6 is + and the PIN7 is connected to the PUL and DIR of the driver respectively.
