How to identify the DLC2-PCIE control card

J16: galvanometer signal, DB15

J7: Laser control interface, DB25

J17: IO/Mark on the fly Universal IO port and flight marking

The front of the board is printed with the words "DLC2-PCIE_V2"

Main features

● Output FIBER laser control signal with DB25 socket

● The galvanometer control signal is a digital signal, which can be directly connected to the internationally accepted digital galvanometer.

Electrical Connection

Interface Description

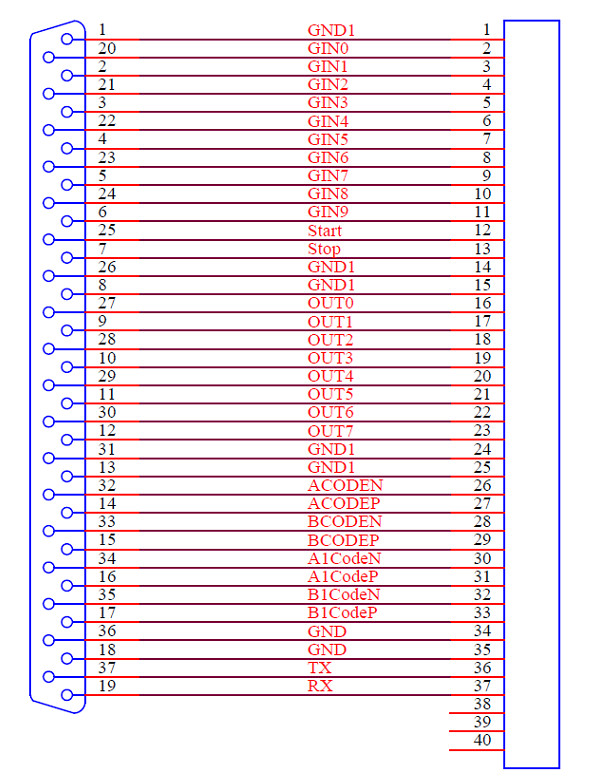

J17: Universal IO port and flight marking (DB37 jack)

The IO signal and flight marking signal of the DLC2-PCIE card are output by J17 (40-pin black simple cow plug) on the board, and the IO signal and the flight marking signal are connected to a DB37 pin plug through a 40-core cable. The DB37 pin plug is mounted in the extension bracket and the bracket is attached to the chassis of the computer. As shown below

Safety Instructions

Please read this section carefully before installing and using the DLC2-PCIE control card. If you have any questions about this document, please contact BJJCZ.

1. Safe operation steps

● Please observe all safety instructions for lasers (including but not limited to descriptions and lasers, galvanometers and related sections in this document)

● Turn on the laser power at any time after turning on the computer power and galvanometer power. Otherwise, it may cause damage due to an uncontrollable laser beam.

We recommend that you use a shutter to avoid damage from uncontrolled lasers.
