Brand Name : | BJJCZ |
Model Number : | DLC2-MC |
Certification : | |
Price : | negotiated |
Payment Terms : | T/T |
Supply Ability : | 1000set |
Delivery Time : | 3-5 work days |

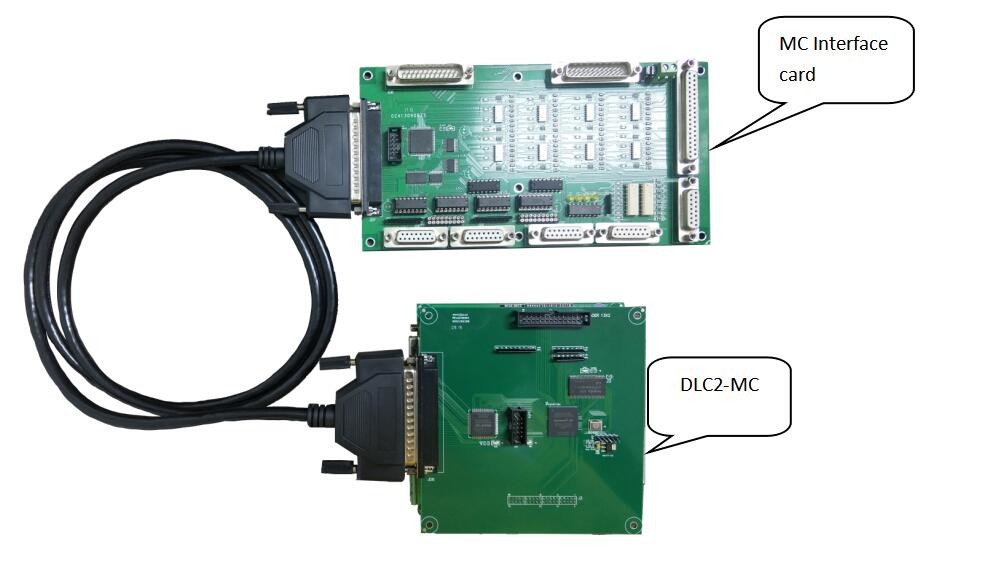

The DLC2-MC control board and EZCAD3 software can complete
real-time synchronous control of 2D/3D scanning galvanometer and
laser. The main working characteristics of the board are as
follows:
(1) Support the following galvanometer protocols: XY2-100 (16-bit),
XY2-100 (18-bit), SL2-100 (20-bit), JCZ-100; at the same time,
special protocols can be customized according to customer
requirements.
(2) Supports fiber, CO2, QCW, SPI, UV, YAG and other lasers through
the laser expansion card
(3) DLC2-MC supports encoder feedback, interpolation motion and
two-axis linkage
(4) Support 10 input and 8 output ports
(5) 12V power supply, the minimum current is 3A
(6) Support flight marking function
(7) Support offline marking function
The board contains two LED indicators. After the power-on self-test is successful, the green light is always on. When the laser light is controlled during the marking process, the red light is on.
Among them:
CON1: power interface, 2P green terminal socket; |
CON2: laser interface, support all lasers, DB25 socket (female); |
CON3: galvanometer interface, support enhanced XY2-100 data protocol, and can drive 2D/3D galvanometer, DB15 socket; |
![]() |
