3D Laser Marker
Systems Supports Flight Marking Function For IPG Laser Source
| Brand Name: | BJJCZ |
| Model Number: | DLC2-M4-3D |
| Place of Origin: | China |
| Minimum Order Quantity: | 1pcs |
| Price: | negotiation |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 3,000pcs per month |
| Delivery Time: | 3-5 working days after received your payment |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for
outer packing |
Description:
Warranty: 1 years
Place of Origin: China
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing
Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,
Restaurant, Home Use, Retail, Food Shop, Printing Shops,
Construction works , Energy & Mining, Food & Beverage Shops,
Advertising Company
Used for: Fiber
Laser Marking Machine
Input Power: DC24V
Support Software: Ezcad
Interface Port: RS232
DLC2-M4-2D: Dynamic focus, large format marking
DLC2-M4-3D: Support 3D marking
Features:

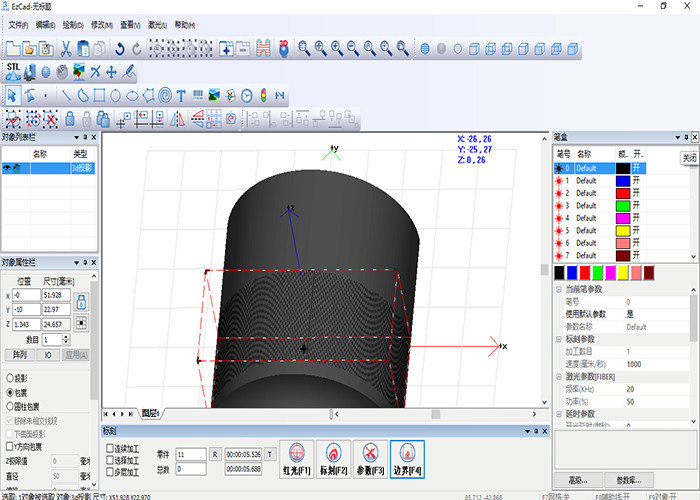

The DLC2 control board and EZCAD3 software can perform real-time
synchronous control of 2D/3D scanning galvanometer and laser. The
main features of the board are as follows:
(1) Support enhanced version of the XY2-100 data protocol (X, Y, Z
triaxial galvanometer)
(2) Supports fiber, CO2, QCW, SPI, UV, YAG and other lasers through
the laser expansion card
(3) Support 10 input and 8 output ports
(4) 12V power supply, minimum current requirement 3A
(5) Support flight marking function
(6) Support offline marking function
(7) Support 16Bit/18Bit galvanometer, which can be customized
according to the actual galvanometer protocol
The board interface is as follows:
The board has two LED indicators. After the board is powered on,
the green light is always on. The red light is on when the laser
light is controlled during the marking process.
Interface function:
CON1: power interface, 2P green terminal socket;
CON2: laser interface, support all lasers, DB25 socket (female);
CON3: galvanometer interface, support enhanced XY2-100 data
protocol, can drive 2D/3D galvanometer, DB15 socket;
CON5: IO interface for flight marking interface, input and output
digital signals, DB37 socket
Applications:
| Scanner Type | Galvo With XY2-100 Interface Support 16bit/18bit Galvo |
| Output Signal | 8 output |
| Input Signal | 10 input |
| Communication Interface | USB 2.0 |
| Operation System | Win 7/8/10 64bit |
| Software | EZCAD3 |
| Support Laser Source | CO2,Fiber,UV,SPI,QCW,YAG |
| Extended axis | 4 axis |
