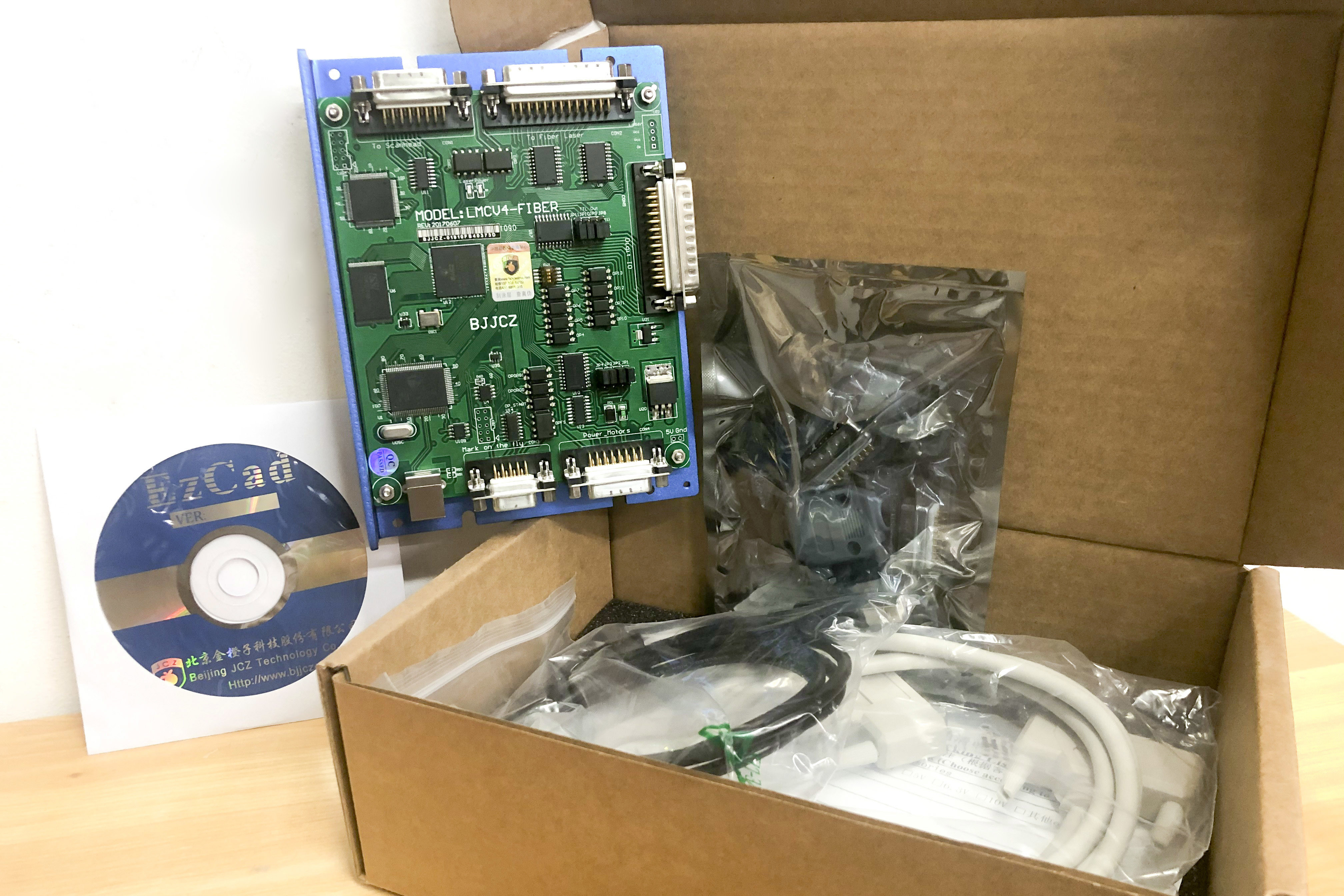

High Speed Scale Marking Laser Control Board Fiber Laser Type For Control System

Description:

main feature

Standard DB25 connector, can be wire to IPG laser directly.

Galvo control signal is digital, which can be connect to most scanhead directly.

on-the-fly marking feature. A encoder can be used to surveillance the pipeline speed

real-timely.

Multiple boards on 1 computer: One computer can control up to 8 control board to mark

different pattern simultaneously

Extension axis(step motor or sever motor): two set of direction/pulse signal can be used to

control 2 step(server) motors.

16 general input signals(TTL campatible): In0-In13, XORG0(IN14), YORG0(IN15).

8 general output signals(TTL campatible): Out0-7 coming out of Con5. Out0 - 3 are TTL

outputs. Out4-7 can be configured as OC outputs or TTL outputs.

LaserErr signal: this signal will be activated when there is an error occurs in the laser, OC

output.

Remark function: this function is used to remark what ever is in the memory of the board,

especially convenient for high speed marking of a same pattern.

Compatible with USB2.0 specifications.

Applications:

• Laser Marking
• Laser Engraving
• Rapid prototyping
• Drilling circuit board via holes
• Cutting cloth
• Cutting paper
